00100 FERRULE FOR R1A 1ST HOSE
Outside skive ferrule for SAE 100 R1A / DIN 20022 1ST hose
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Fix hose with coupling after crimping |
Details about 00100 FERRULE FOR R1A 1ST HOSE

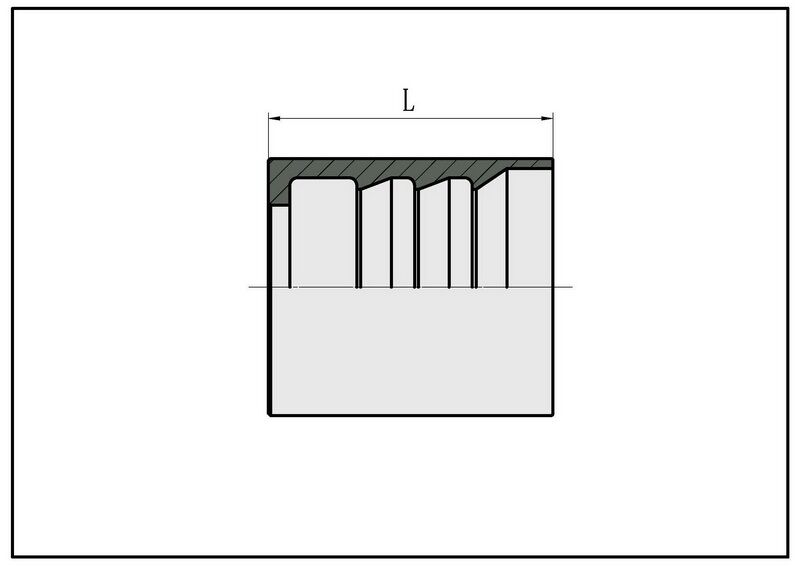

| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00100-03 | 5 | 3 | 27 |
| 00100-04 | 6 | 4 | 30 |
| 00100-05 | 8 | 5 | 31 |
| 00100-06 | 10 | 6 | 32 |
| 00100-08 | 12 | 8 | 34 |
| 00100-10 | 16 | 10 | 37 |
| 00100-12 | 20 | 12 | 43 |
| 00100-16 | 25 | 16 | 50 |
| 00100-20 | 32 | 20 | 59 |
| 00100-24 | 40 | 24 | 74 |
| 00100-32 | 50 | 32 | 78 |
Application: One Wire Braid Hose SAE 100 R1A / DIN 20022 1ST
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRULE | |
| mm | DASH | in | mm | mm | OUTSIDE SKIVE | |
| 1A03 / 1ST03 | 5 | -03 | 3/16 | 4.8 | 12.7 | 00100-03 |
| 1A04 / 1ST04 | 6 | -04 | 1/4 | 6.4 | 15.9 | 00100-04 |
| 1A05 / 1ST05 | 8 | -05 | 5/16 | 7.9 | 17.5 | 00100-05 |
| 1A06 / 1ST06 | 10 | -06 | 3/8 | 9.5 | 19.9 | 00100-06 |
| 1A08 / 1ST08 | 12 | -08 | 1/2 | 12.7 | 23 | 00100-08 |
| 1A10 / 1ST10 | 16 | -10 | 5/8 | 15.9 | 26.2 | 00100-10 |
| 1A12 / 1ST12 | 20 | -12 | 3/4 | 19 | 30.2 | 00100-12 |
| 1A16 / 1ST16 | 25 | -16 | 1 | 25.4 | 38.1 | 00100-16 |
| 1A20 / 1ST20 | 32 | -20 | 1.1/4 | 31.8 | 46.1 | 00100-20 |
| 1A24 / 1ST24 | 40 | -24 | 1.1/2 | 38.1 | 52.4 | 00100-24 |
| 1A32 / 1ST32 | 50 | -32 | 2 | 50.8 | 66.7 | 00100-32 |
