00210 FERRULE FOR R2AT 2SN HOSE
Non-skive ferrule for SAE 100 R2AT / EN 853 2SN hose
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Fix hose with coupling after crimping |

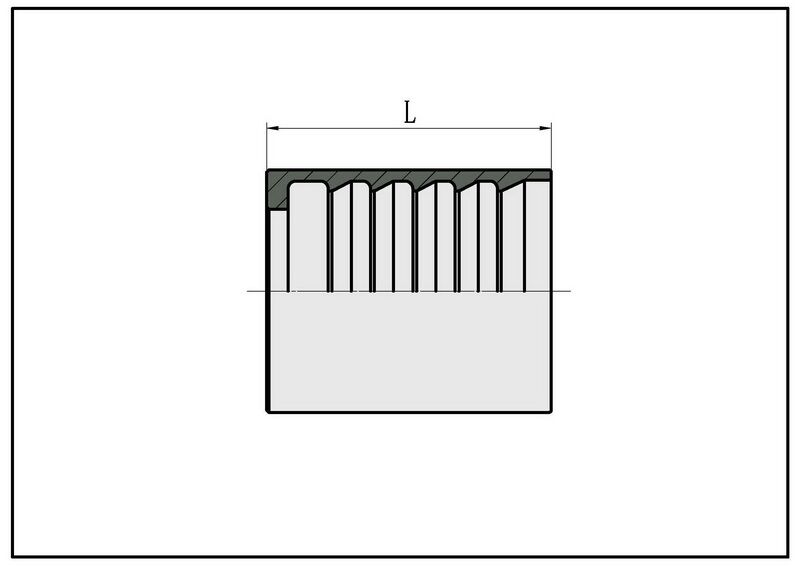

Details about 00210 FERRULE FOR R2AT 2SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00210-03 | 5 | 3 | 27 |
| 00210-04 | 6 | 4 | 30 |
| 00210-05 | 8 | 5 | 31 |
| 00210-06 | 10 | 6 | 32 |
| 00210-08 | 12 | 8 | 34 |
| 00210-10 | 16 | 10 | 37 |
| 00210-12 | 20 | 12 | 43 |
| 00210-16 | 25 | 16 | 50 |
| 00210-20 | 30 | 20 | 59 |
| 00210-24 | 40 | 24 | 74 |
| 00210-32 | 50 | 32 | 78 |
| Attention: Don’t recommend 00210 series for engineering machine | |||
Application: Two Wires Braid Hose (SAE 100 R2AT) & (EN 853 2SN)
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRULE | |
| mm | DASH | in | mm | mm | NON SKIVE | |
| 2T03 / 2SN03 | 5 | -03 | 3/16 | 4.8 | 13.4 | 00210-03 |
| 2T04 / 2SN04 | 6 | -04 | 1/4 | 6.4 | 15 | 00210-04 |
| 2T05 / 2SN05 | 8 | -05 | 5/16 | 7.9 | 16.7 | 00210-05 |
| 2T06 / 2SN06 | 10 | -06 | 3/8 | 9.5 | 19.1 | 00210-06 |
| 2T08 / 2SN08 | 12 | -08 | 1/2 | 12.7 | 22.2 | 00210-08 |
| 2T10 / 2SN10 | 16 | -10 | 5/8 | 15.9 | 25.4 | 00210-10 |
| 2T12 / 2SN12 | 20 | -12 | 3/4 | 19 | 29.3 | 00210-12 |
| 2T16 / 2SN16 | 25 | -16 | 1 | 25.4 | 38.1 | 00210-16 |
| 2T20 / 2SN20 | 32 | -20 | 1.1/4 | 31.8 | 48.3 | 00210-20 |
| 2T24 / 2SN24 | 40 | -24 | 1.1/2 | 38.1 | 54.6 | 00210-24 |
| 2T32 / 2SN32 | 50 | -32 | 2 | 50.8 | 67.4 | 00210-32 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
