00402 FERRULE FOR R9A-R12, 4SP HOSE
Outside skive ferrule for SAE100 R9A, R12(04-32), EN856-4SP(04-16)
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Fix hose with coupling after crimping |

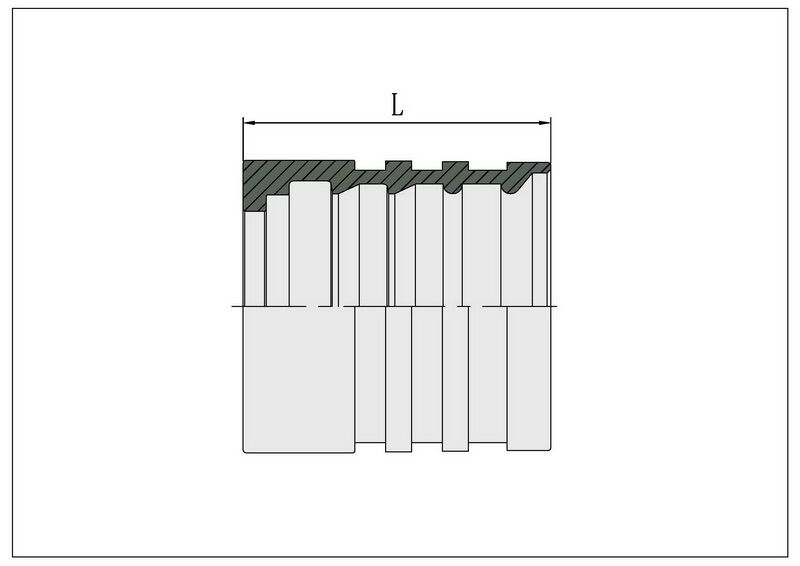

Details about 00402 FERRULE FOR R9A-R12, 4SP HOSE
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00402-04 | 6 | 4 | 30 |
| 00402-06 | 10 | 6 | 33 |
| 00402-08 | 12 | 8 | 34 |
| 00402-10 | 16 | 10 | 39 |
| 00402-12 | 20 | 12 | 40 |
| 00402-16 | 25 | 16 | 51 |
| 00402-20 | 32 | 20 | 60 |
| 00402-24 | 40 | 24 | 70 |
| 00402-32 | 50 | 32 | 72 |
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00403-20 | 32 | 20 | 60 |
| 00403-24 | 40 | 24 | 70 |
| 00403-32 | 50 | 32 | 72 |
Application hoses:
Four Wires Spiral Hose SAE100 R9A
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRULE | |
| mm | DASH | in | mm | mm | OUTSIDE SKIVE | |
| R9A06 | 10 | -6 | 3/8 | 9.5 | 21.4 | 00402-10 |
| R9A08 | 12 | -8 | 1/2 | 12.7 | 24.8 | 00402-10 |
| R9A12 | 20 | -12 | 3/4 | 19 | 31.4 | 00402-12 |
| R9A16 | 25 | -16 | 1 | 25.4 | 39.8 | 00402-16 |
Four Wires Spiral Hose SAE100 R12
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRUE | |
| mm | DASH | in | mm | mm | OUTSIDE SKIVE | |
| R1206 | 10 | -06 | 3/8 | 9.5 | 20.3 | 00402-06 |
| R1208 | 12 | -08 | 1/2 | 12.7 | 23.8 | 00402-08 |
| R1210 | 16 | -10 | 5/8 | 15.9 | 27.4 | 00402-10 |
| R1212 | 20 | -12 | 3/4 | 19 | 30.7 | 00402-12 |
| R1216 | 25 | -16 | 1 | 25.4 | 38 | 00402-16 |
| R1220 | 32 | -20 | 1.1/4 | 31.8 | 47 | 00402-20 |
| R1224 | 40 | -24 | 1.1/2 | 38.1 | 53.5 | 00402-24 |
| R1232 | 50 | -32 | 2 | 50.8 | 66.7 | 00402-32 |
Four Wires Spiral Hose EN856 4SP HOSE
| HOSE PART NO. | DN | HOSE SIZE | HOSE I.D. | HOSE O.D. | FERRUE | |
| mm | DASH | in | mm | mm | OUTSIDE SKIVE | |
| 4SP04 | 6 | -04 | 1/4 | 6.4 | 17.9 | 00402-04 |
| 4SP06 | 10 | -06 | 3/8 | 9.5 | 21.4 | 00402-06 |
| 4SP08 | 12 | -08 | 1/2 | 12.7 | 24.6 | 00402-08 |
| 4SP10 | 16 | -10 | 5/8 | 15.9 | 28.2 | 00402-10 |
| 4SP12 | 20 | -12 | 3/4 | 19 | 32.2 | 00402-12 |
| 4SP16 | 25 | -16 | 1 | 25.4 | 39.7 | 00402-16 |
| 4SP20 | 32 | -20 | 1.1/4 | 31.8 | 50.8 | 00403-20 |
| 4SP24 | 40 | -24 | 1.1/2 | 38.1 | 57.2 | 00403-24 |
| 4SP32 | 50 | -32 | 2 | 50.8 | 69.8 | 00403-32 |
