13011Y-SP

AGR-K BSPT MALE

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 13011Y-SP

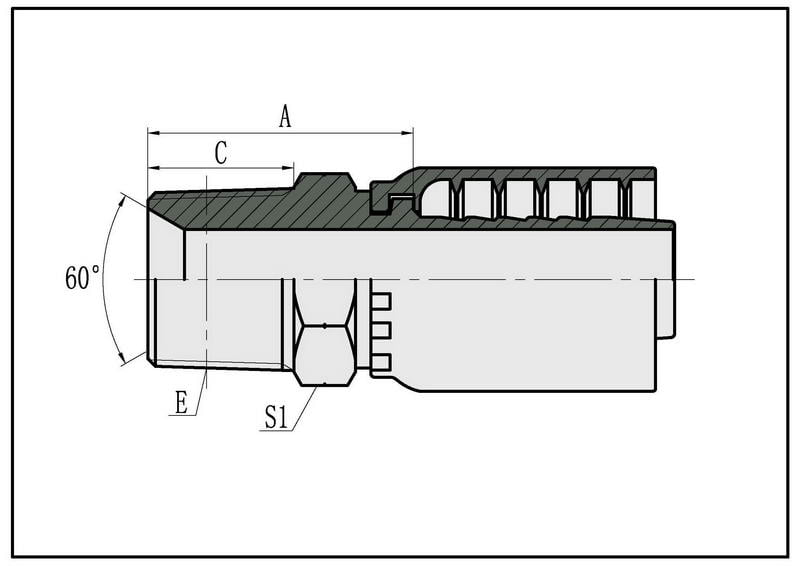

 PART NO. E HOSE   BORE   DIMENSIONS
BRAIDED HOSE SPIRAL HOSE THREAD E DN DASH A C S1
13011Y-02-04SPZ R1/8″x28 6 4 22.5 10 12
13011Y-04-04SPZ R1/4″x19 6 4 27 14.5 14
13011Y-04-05SPZ R1/4″x19 8 5 27 14.5 14
13011Y-04-06SPZ 13012Y-04-06SPZ R1/4″x19 10 6 27 14.5 17
13011Y-06-04SPZ R3/8″x19 6 4 27.5 15 17
13011Y-06-05SPZ R3/8″x19 8 5 27.5 15 17
13011Y-06-06SPZ 13012Y-06-06SPZ R3/8″x19 10 6 27.5 15 17
13011Y-06-08SPZ 13012Y-06-08SPZ R3/8″x19 12 8 28 15 22
13011Y-08-06TSPZ 13012Y-08-06TSPZ R1/2″x14 10 6 34.5 20 22
13011Y-08-08SPZ 13012Y-08-08SPZ R1/2″x14 12 8 35 20 22
13011Y-08-10SPZ 13012Y-08-10SPZ R1/2″x14 16 10 35.5 20 22
13011Y-08-12SPZ 13012Y-08-12SPZ R1/2″x14 20 12 38 20 27
13011Y-12-08TSPZ 13012Y-12-08TSPZ R3/4″x14 12 8 37 20 27
13011Y-12-10SPZ 13012Y-12-10SPZ R3/4″x14 16 10 38 20 27
13011Y-12-12SPZ 13012Y-12-12SPZ R3/4″x14 20 12 38.5 20 27
13011Y-12-16SPZ 13012Y-12-16SPZ R3/4″x14 25 16 40.5 20 32
13011Y-16-12TSPZ 13012Y-16-12TSPZ R1″x11 20 12 43.5 25.5 36
13011Y-16-16SPZ 13012Y-16-16SPZ R1″x11 25 16 45 25.5 36
13011Y-20-20SPZ 13012Y-20-20SPZ R1.1/4″x11 32 20 49.5/51.6 26.5 46
13011Y-24-24SPZ 13012Y-24-24SPZ R1.1/2″x11 40 24 52.5/55.5 26.5 50
13011Y-32-24SPZ 13012Y-32-24SPZ R2″x11 40 24 57/60 30 65
13011Y-32-32SPZ 13012Y-32-32SPZ R2″x11 50 32 57/60.4 30 65
Note:
1. The dimension before “/” for A is suitable for braided hose, and the dimension after /for A is suitable for spiral hose.

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
