16711LY

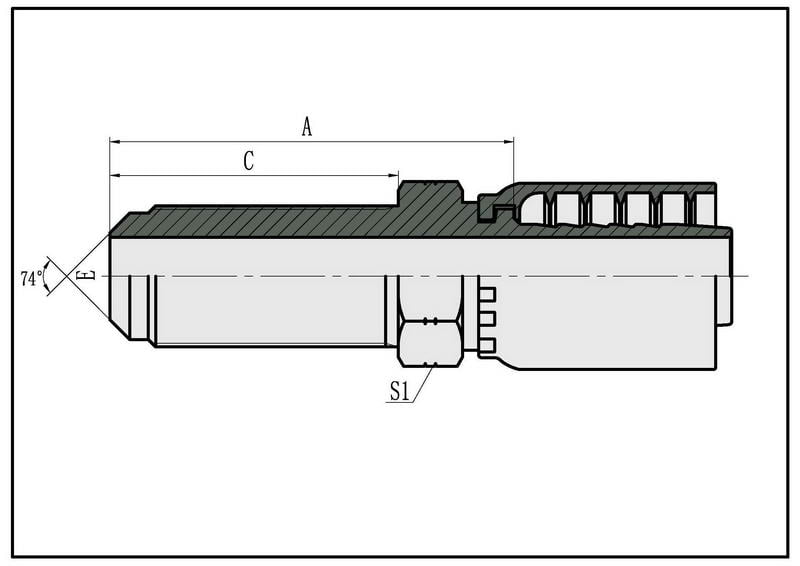

AGJ ONE PIECE BULKHEAD JIC MALE 74° CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 16711LY
| PART NO. | HOSE BORE | DIMENSIONS | ||||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | A | C | S1 | |
| 16711LY-04-04Z | – | 7/16″x20 | 6 | 4 | 45 | 32.5 | 17 | |
| 16711LY-05-04Z | – | 1/2″x20 | 6 | 4 | 43 | 30.5 | 19 | |
| 16711LY-05-05Z | – | 1/2″x20 | 8 | 5 | 43 | 30.5 | 19 | |
| 16711LY-06-04Z | – | 9/16″x18 | 6 | 4 | 47 | 32.5 | 22 | |
| 16711LY-06-05Z | – | 9/16″x18 | 8 | 5 | 47 | 32.5 | 22 | |
| 16711LY-06-06Z | 16712LY-06-06Z | 9/16″x18 | 10 | 6 | 47 | 32.5 | 22 | |
| 16711LY-08-06Z | 16712LY-08-06Z | 3/4″x16 | 10 | 6 | 51 | 36.5 | 24 | |
| 16711LY-08-08Z | 16712LY-08-08Z | 3/4″x16 | 12 | 8 | 51.5 | 36.5 | 24 | |
| 16711LY-10-06Z | 16712LY-10-06Z | 7/8″x14 | 10 | 6 | 56.5 | 40 | 30 | |
| 16711LY-10-08Z | 16712LY-10-08Z | 7/8″x14 | 12 | 8 | 57 | 40 | 30 | |
| 16711LY-10-10Z | 16712LY-10-10Z | 7/8″x14 | 16 | 10 | 58 | 40 | 30 | |
| 16711LY-12-08Z | 16712LY-12-08Z | 1.1/16″x12 | 12 | 8 | 63.5 | 44.5 | 36 | |
| 16711LY-12-10Z | 16712LY-12-10Z | 1.1/16″x12 | 16 | 10 | 64 | 44.5 | 36 | |
| 16711LY-12-12Z | 16712LY-12-12Z | 1.1/16″x12 | 20 | 12 | 64.5 | 44.5 | 36 | |
| 16711LY-16-12Z | 16712LY-16-12Z | 1.5/16″x12 | 20 | 12 | 66 | 44.5 | 41 | |
| 16711LY-16-16Z | 16712LY-16-16Z | 1.5/16″x12 | 25 | 16 | 67 | 44.5 | 41 | |
| 16711LY-20-16Z | 16712LY-20-16Z | 1.5/8″x12 | 25 | 16 | 70.5 | 45.7 | 50 | |
| 16711LY-20-20Z | 16712LY-20-20Z | 1.5/8″x12 | 32 | 20 | 71.2/73.3 | 45.7 | 50 | |
| 16711LY-24-20Z | 16712LY-24-20Z | 1.7/8″x12 | 32 | 20 | 71.5/73.3 | 46 | 55 | |
| 16711LY-24-24Z | 16712LY-24-24Z | 1.7/8″x12 | 40 | 24 | 71.5/74.5 | 46 | 55 | |
| Note: | ||||||||
| 1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. | ||||||||
