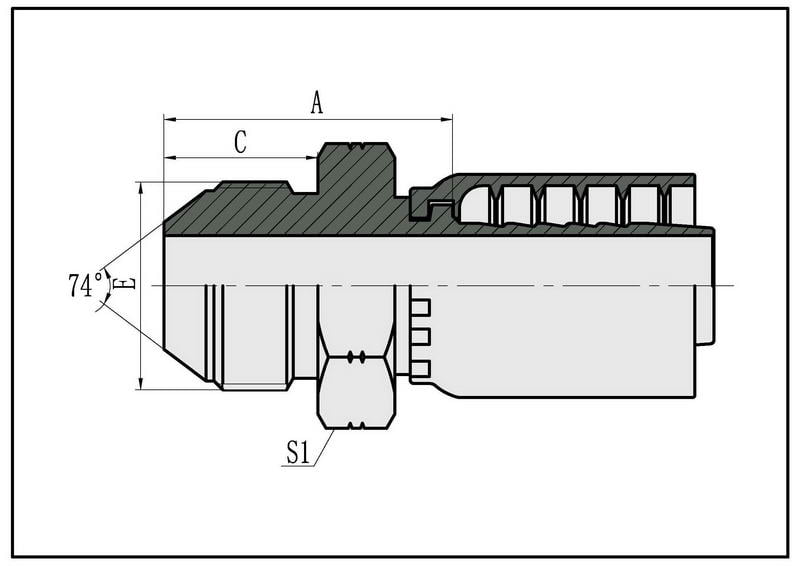

AGJ ONE PIECE JIC MALE 74° CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 16711Y
| PART NO. | E | HOSE BORE | DIMENSIONS | |||||
| BRAIDED | SPIRAL | THERAD E | DN | DASH | A | C | S1 | |
| 16711Y-04-04Z | – | 7/16″x20 | 6 | 4 | 26.5 | 14 | 12 | |
| 16711Y-05-04Z | – | 1/2″x20 | 6 | 4 | 26.5 | 14 | 14 | |
| 16711Y-05-05Z | – | 1/2″x20 | 8 | 5 | 26.5 | 14 | 14 | |
| 16711Y-05-06Z | 16712Y-05-06Z | 1/2″x20 | 10 | 6 | 26.5 | 14 | 17 | |
| 16711Y-06-04Z | – | 9/16″x18 | 6 | 4 | 26.5 | 14.1 | 17 | |
| 16711Y-06-05Z | – | 9/16″x18 | 8 | 5 | 26.5 | 14.1 | 17 | |
| 16711Y-06-06Z | 16712Y-06-06Z | 9/16″x18 | 10 | 6 | 26.5 | 14.1 | 17 | |
| 16711Y-08-06Z | 16712Y-08-06Z | 3/4″x16 | 10 | 6 | 31.5 | 16.7 | 22 | |
| 16711Y-08-08Z | 16712Y-08-08Z | 3/4″x16 | 12 | 8 | 32 | 16.7 | 22 | |
| 16711Y-10-06Z | 16712Y-10-06Z | 7/8″x14 | 10 | 6 | 33.5 | 19.3 | 24 | |
| 16711Y-10-08Z | 16712Y-10-08Z | 7/8″x14 | 12 | 8 | 34 | 19.3 | 24 | |
| 16711Y-10-10Z | 16712Y-10-10Z | 7/8″x14 | 16 | 10 | 35 | 19.3 | 24 | |
| 16711Y-12-08Z | 16712Y-12-08Z | 1.1/16″x12 | 12 | 8 | 38.5 | 21.9 | 30 | |
| 16711Y-12-10Z | 16712Y-12-10Z | 1.1/16″x12 | 16 | 10 | 39.5 | 21.9 | 30 | |
| 16711Y-12-12Z | 16712Y-12-12Z | 1.1/16″x12 | 20 | 12 | 40 | 21.9 | 30 | |
| 16711Y-12-16Z | 16712Y-12-16Z | 1.1/16″x12 | 25 | 16 | 42.5 | 21.9 | 30 | |
| 16711Y-14-10Z | 16712Y-14-10Z | 1.3/16″x12 | 16 | 10 | 41.5 | 22.6 | 32 | |
| 16711Y-14-12Z | 16712Y-14-12Z | 1.3/16″x12 | 20 | 12 | 40.5 | 22.6 | 32 | |
| 16711Y-16-12Z | 16712Y-16-12Z | 1.5/16″x12 | 20 | 12 | 43 | 23.1 | 36 | |
| 16711Y-16-16Z | 16712Y-16-16Z | 1.5/16″x12 | 25 | 16 | 43.5 | 23.1 | 36 | |
| 16711Y-20-16Z | 16712Y-20-16Z | 1.5/8″x12 | 25 | 16 | 47 | 24.3 | 46 | |
| 16711Y-20-20Z | 16712Y-20-20Z | 1.5/8″x12 | 32 | 20 | 47/49.1 | 24.3 | 46 | |
| 16711Y-24-20Z | 16712Y-24-20Z | 1.7/8″x12 | 32 | 20 | 53/55.1 | 27.5 | 50 | |
| 16711Y-24-24Z | 16712Y-24-24Z | 1.7/8″x12 | 40 | 24 | 53/56 | 27.5 | 50 | |
| 16711Y-32-32Z | 16712Y-32-32Z | 2.1/2″x12 | 50 | 32 | 62/65.4 | 33.9 | 65 | |
| Note: | ||||||||
| 1.The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. | ||||||||
