18611Y
JIS ONE PIECE METRIC MALE 60°CONE SEAT
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 18611Y

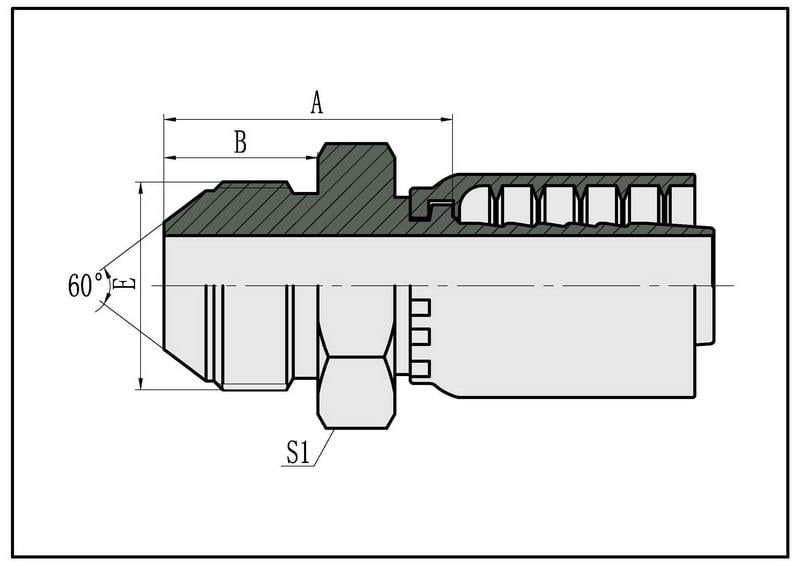

| PART NO. | E | HOSE BORE | DIMENSIONS | |||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | A | C | S1 | |
| 18611Y-14-04Z | – | M14x1.5 | 6 | 4 | 29.5 | 17 | 17 | |
| 18611Y-16-04Z | – | M16x1.5 | 6 | 4 | 30.5 | 18 | 17 | |
| 18611Y-16-06Z | 18612Y-16-06Z | M16x1.5 | 10 | 6 | 30.5 | 18 | 17 | |
| 18611Y-18-06Z | 18612Y-18-06Z | M18x1.5 | 10 | 6 | 30.5 | 18 | 19 | |
| 18611Y-20-08Z | 18612Y-20-08Z | M20x1.5 | 12 | 8 | 35 | 20 | 22 | |
| 18611Y-22-08Z | 18612Y-22-08Z | M22x1.5 | 12 | 8 | 35.5 | 20 | 24 | |
| 18611Y-24-10Z | 18612Y-24-10Z | M24x1.5 | 16 | 10 | 39.5 | 21.5 | 27 | |
| 18611Y-30-12Z | 18612Y-30-12Z | M30x1.5 | 20 | 12 | 45.5 | 26 | 32 | |
| 18611Y-33-16Z | 18612Y-33-16Z | M33x1.5 | 25 | 16 | 50.5 | 30 | 36 | |
| 18611Y-36-20Z | 18612Y-36-20Z | M36x1.5 | 32 | 20 | 56.5/58.6 | 33 | 41 | |
| 18611Y-42-24Z | 18612Y-42-24Z | M42x1.5 | 40 | 24 | 59.5/62.5 | 36 | 46 | |
| Note: | ||||||||
| 1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. | ||||||||
