1BG9-OG
90° ELBOW BSP MALE 60° SEAT / BSP MALE O-RING ADJUSTABLE STUD END
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 1BG9-OG

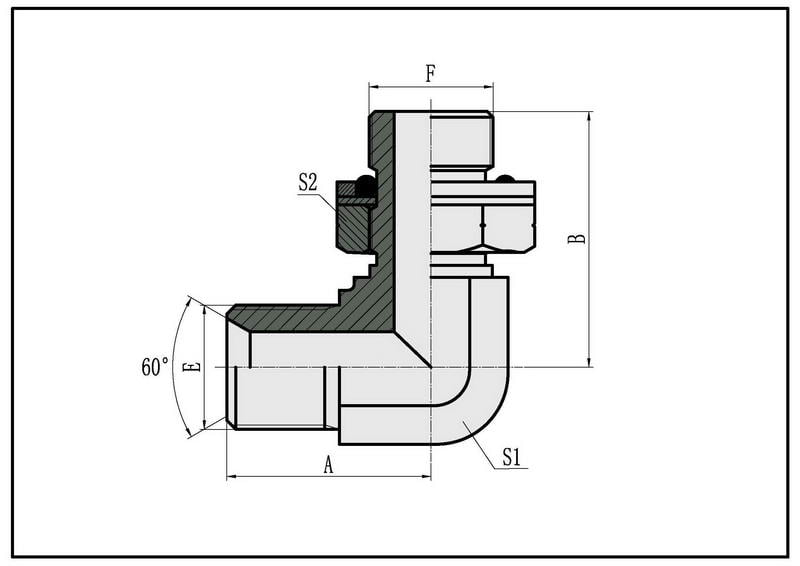

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | F | F | A | B | S1 | S2 | |||
| 1BG9-04OG | G1/4″*19 | G1/4″*19 | O111 | 25 | 31.5 | 14 | 19 | ||
| 1BG9-04-06OG | G1/4″*19 | G3/8″*19 | O113 | 26.5 | 36.8 | 16 | 22 | ||
| 1BG9-06OG | G3/8″*19 | G3/8″*19 | O113 | 28 | 36.8 | 16 | 22 | ||
| 1BG9-06-08OG | G3/8″*19 | G1/2″*14 | O115 | 31 | 43.2 | 22 | 27 | ||
| 1BG9-08OG | G1/2″*14 | G1/2″*14 | O115 | 34.5 | 43.2 | 22 | 27 | ||
| 1BG9-08-12OG | G1/2″*14 | G3/4″*14 | O119 | 40 | 49.3 | 27 | 32 | ||
| 1BG9-12OG | G3/4″*14 | G3/4″*14 | O119 | 40 | 49.3 | 27 | 32 | ||
| 1BG9-12-16OG | G3/4″*14 | G1″*11 | O217 | 45 | 53 | 33 | 41 | ||
| 1BG9-16OG | G1″*11 | G1″*11 | O217 | 46 | 53 | 33 | 41 | ||
| 1BG9-20-16OG | G1.1/4″*11 | G1″*11 | O217 | 50.5 | 58 | 41 | 41 | ||
| 1BG9-20OG | G1.1/4″*11 | G1.1/4″*11 | O222 | 51.5 | 58 | 41 | 50 | ||
| 1BG9-24OG | G1.1/2″*11 | G1.1/2″*11 | O224 | 58.5 | 63 | 48 | 55 | ||
| Note: F end is connected with DIN 3852 port. | |||||||||
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
