STRAIGHT ADAPTER METRIC MALE 24° CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |

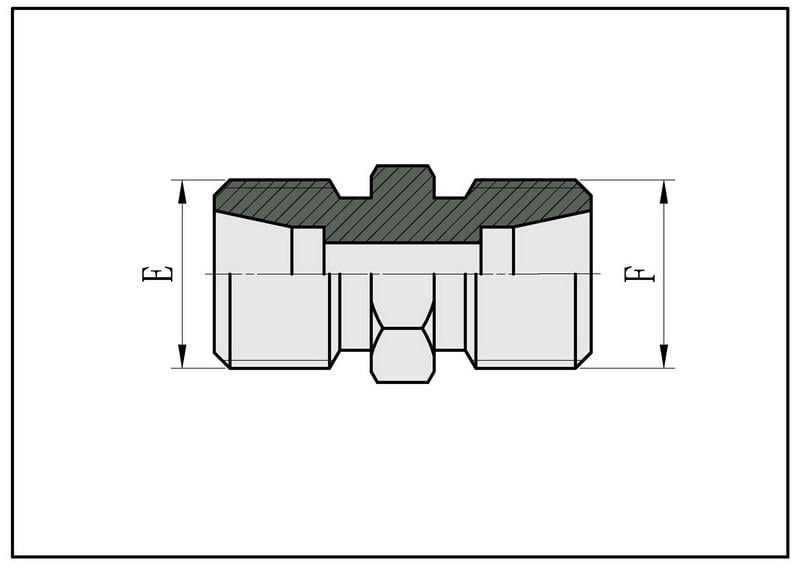

Details about 1C,1D
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||||
| E | F | D1 | D2 | I1 | L1 | S1 | S2 | S3 | |||
| 1C-12 | M12*1.5 | M12*1.5 | 6 | 6 | 10 | 39 | 12 | 14 | 14 | 31.5 L | |
| 1C-14 | M14*1.5 | M14*1.5 | 8 | 8 | 11 | 40 | 14 | 17 | 17 | ||
| 1C-16 | M16*1.5 | M16*1.5 | 10 | 10 | 13 | 42 | 17 | 19 | 19 | ||
| 1C-18 | M18*1.5 | M18*1.5 | 12 | 12 | 14 | 43 | 19 | 22 | 22 | ||
| 1C-22 | M22*1.5 | M22*1.5 | 15 | 15 | 16 | 46 | 24 | 27 | 27 | ||
| 1C-26 | M26*1.5 | M26*1.5 | 18 | 18 | 16 | 48 | 27 | 32 | 32 | ||
| 1C-30 | M30*2 | M30*2 | 22 | 22 | 20 | 52 | 32 | 36 | 36 | 16 L | |
| 1C-36 | M36*2 | M36*2 | 28 | 28 | 21 | 54 | 41 | 41 | 41 | ||
| 1C-45 | M45*2 | M45*2 | 35 | 35 | 20 | 63 | 46 | 50 | 50 | ||
| 1C-52 | M52*2 | M52*2 | 42 | 42 | 21 | 66 | 55 | 60 | 60 | ||
| 1D-14 | M14*1.5 | M14*1.5 | 6 | 6 | 16 | 45 | 14 | 17 | 17 | 63 S | |
| 1D-16 | M16*1.5 | M16*1.5 | 8 | 8 | 18 | 47 | 17 | 19 | 19 | ||
| 1D-18 | M18*1.5 | M18*1.5 | 10 | 10 | 17 | 49 | 19 | 22 | 22 | ||
| 1D-20 | M20*1.5 | M20*1.5 | 12 | 12 | 19 | 51 | 22 | 24 | 24 | ||
| 1D-22 | M22*1.5 | M22*1.5 | 14 | 14 | 22 | 57 | 24 | 27 | 27 | ||
| 1D-24 | M24*1.5 | M24*1.5 | 16 | 16 | 21 | 57 | 27 | 30 | 30 | 40 S | |
| 1D-30 | M30*2 | M30*2 | 20 | 20 | 23 | 66 | 32 | 36 | 36 | ||
| 1D-36 | M36*2 | M36*2 | 25 | 25 | 26 | 74 | 41 | 46 | 46 | ||
| 1D-42 | M45*2 | M45*2 | 30 | 30 | 27 | 80 | 46 | 50 | 50 | ||
| 1D-52 | M52*2 | M52*2 | 38 | 38 | 29 | 90 | 55 | 60 | 60 | 31.5 S | |
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 1C-30RN. | |||||||||||
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||||||
| E | F | D1 | D2 | L1 | I1 | S1 | S2 | S3 | ||
| 1C-12-14 | M12*1.5 | M14*1.5 | 6 | 8 | 40 | 11 | 14 | 15 | 17 | 31.5 L |
| 1C-12-16 | M12*1.5 | M16*1.5 | 6 | 10 | 41 | 12 | 17 | 15 | 19 | |
| 1C-12-18 | M12*1.5 | M18*1.5 | 6 | 12 | 42 | 13 | 19 | 15 | 22 | |
| 1C-14-16 | M14*1.5 | M16*1.5 | 8 | 10 | 41 | 13 | 17 | 17 | 19 | |
| 1C-14-18 | M14*1.5 | M18*1.5 | 8 | 12 | 42 | 13 | 19 | 17 | 22 | |
| 1C-16-18 | M16*1.5 | M18*1.5 | 10 | 12 | 43 | 14 | 19 | 19 | 22 | |
| 1C-16-22 | M16*1.5 | M22*1.5 | 10 | 15 | 45 | 15 | 24 | 19 | 27 | |
| 1C-16-26 | M16*1.5 | M26*1.5 | 10 | 18 | 46 | 16 | 27 | 19 | 32 | |
| 1C-18-22 | M18*1.5 | M22*1.5 | 12 | 15 | 45 | 15 | 24 | 22 | 27 | |
| 1C-18-26 | M18*1.5 | M26*1.5 | 12 | 18 | 46 | 16 | 27 | 22 | 32 | |
| 1C-18-30 | M18*1.5 | M30*2 | 12 | 22 | 48 | 18 | 32 | 22 | 36 | |
| 1C-22-26 | M22*1.5 | M26*1.5 | 15 | 18 | 48 | 17 | 27 | 27 | 32 | 16 L |
| 1C-22-30 | M22*1.5 | M30*2 | 15 | 22 | 50 | 19 | 32 | 27 | 36 | |
| 1C-26-30 | M26*1.5 | M30*2 | 18 | 22 | 50 | 18 | 32 | 32 | 36 | |
| 1C-26-36 | M26*1.5 | M36*2 | 18 | 28 | 52 | 19 | 41 | 32 | 41 | |
| 1C-30-36 | M30*2 | M36*2 | 22 | 28 | 54 | 21 | 41 | 36 | 41 | |
| 1C-30-45 | M30*2 | M45*2 | 22 | 35 | 59 | 21 | 46 | 36 | 50 | |
| 1C-36-45 | M36*2 | M45*2 | 28 | 35 | 59 | 21 | 46 | 41 | 50 | |
| 1D-14-16 | M14*1.5 | M16*1.5 | 6 | 8 | 47 | 18 | 17 | 17 | 19 | 63 S |
| 1D-14-18 | M14*1.5 | M18*1.5 | 6 | 10 | 48 | 18 | 19 | 17 | 22 | |
| 1D-14-20 | M14*1.5 | M20*1.5 | 6 | 12 | 50 | 20 | 22 | 17 | 24 | |
| 1D-16-18 | M16*1.5 | M18*1.5 | 8 | 10 | 48 | 18 | 19 | 19 | 22 | |
| 1D-16-20 | M16*1.5 | M20*1.5 | 8 | 12 | 50 | 20 | 22 | 19 | 24 | |
| 1D-18-20 | M18*1.5 | M20*1.5 | 10 | 12 | 51 | 19 | 22 | 22 | 24 | |
| 1D-18-22 | M18*1.5 | M22*1.5 | 10 | 14 | 54 | 21 | 24 | 22 | 27 | |
| 1D-18-30 | M18*1.5 | M30*2 | 10 | 20 | 59 | 22 | 32 | 22 | 36 | |
| 1D-20-22 | M20*1.5 | M22*1.5 | 12 | 14 | 54 | 21 | 24 | 24 | 27 | 40 S |
| 1D-20-24 | M20*1.5 | M24*1.5 | 12 | 16 | 54 | 20 | 27 | 24 | 30 | |
| 1D-20-30 | M20*1.5 | M30*2 | 12 | 20 | 60 | 22 | 32 | 24 | 36 | |
| 1D-22-24 | M22*1.5 | M24*1.5 | 14 | 16 | 57 | 22 | 27 | 27 | 30 | |
| 1D-24-30 | M24*1.5 | M30*2 | 16 | 20 | 63 | 23 | 32 | 30 | 36 | |
| 1D-24-36 | M24*1.5 | M36*2 | 16 | 25 | 68 | 26 | 41 | 30 | 46 | |
| 1D-30-36 | M30*2 | M36*2 | 20 | 25 | 71 | 26 | 41 | 36 | 46 | |
| 1D-30-42 | M30*2 | M42*2 | 20 | 30 | 74 | 26 | 46 | 36 | 50 | |
| 1D-36-42 | M36*2 | M42*2 | 25 | 30 | 77 | 27 | 46 | 46 | 50 | |
| 1D-42-52 | M42*2 | M52*2 | 30 | 38 | 87 | 29 | 55 | 50 | 60 | 31.5 S |
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix “RN” after our part NO., for example 1C-30-36RN. | ||||||||||
