1J9
90° ELBOW JIC MALE 74° CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 1J9

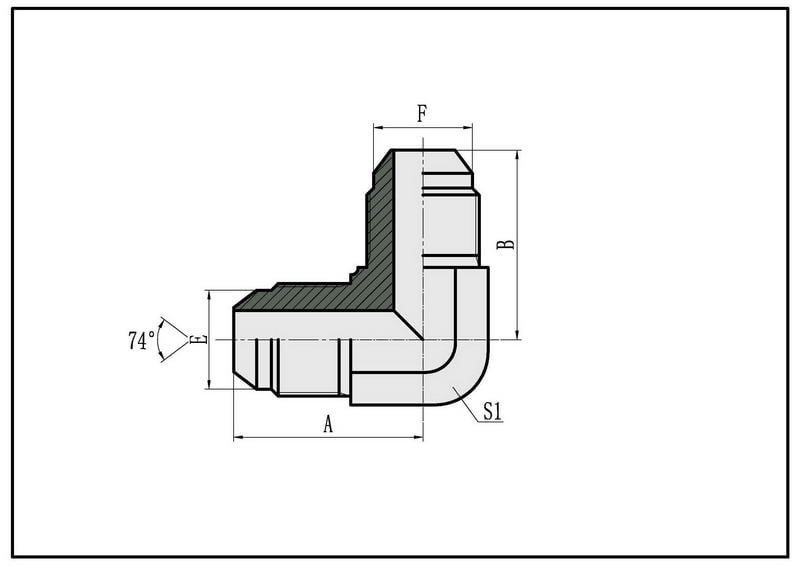

| PART NO. | THREAD | DIMENSIONS | |||||||
| E | F | A | B | S1 | |||||
| 1J9-02 | 5/16″*24 | 5/16″*24 | 20.5 | 20.5 | 11 | ||||
| 1J9-03 | 3/8″*24 | 3/8″*24 | 22 | 22 | 11 | ||||
| 1J9-04 | 7/16″*20 | 7/16″*20 | 24.5 | 24.5 | 11 | ||||
| 1J9-05 | 1/2″*20 | 1/2″*20 | 26.6 | 26.6 | 14 | ||||
| 1J9-05-06 | 1/2″*20 | 9/16“*18 | 26.6 | 26.6 | 14 | ||||
| 1J9-06 | 9/16“*18 | 9/16“*18 | 26.9 | 26.9 | 14 | ||||
| 1J9-06-08 | 9/16“*18 | 3/4″*16 | 30 | 30 | 19 | ||||
| 1J9-06-10 | 9/16“*18 | 7/8″*14 | 32 | 32 | 22 | ||||
| 1J9-08 | 3/4″*16 | 3/4″*16 | 32 | 32 | 19 | ||||
| 1J9-08-10 | 3/4″*16 | 7/8″*14 | 34.8 | 34.8 | 22 | ||||
| 1J9-10 | 7/8″*14 | 7/8″*14 | 37.8 | 37.8 | 22 | ||||
| 1J9-10-12 | 7/8″*14 | 1.1/16″*12 | 41 | 41 | 27 | ||||
| 1J9-12 | 1.1/16″*12 | 1.1/16″*12 | 44.2 | 44.2 | 27 | ||||
| 1J9-14 | 1.3/16″*12 | 1.3/16″*12 | 47.5 | 47.5 | 30 | ||||
| 1J9-16 | 1.5/16″*12 | 1.5/16″*12 | 49 | 49 | 33 | ||||
| 1J9-20 | 1.5/8″*12 | 1.5/8″*12 | 55.5 | 55.5 | 41 | ||||
| 1J9-24 | 1.7/8″*12 | 1.7/8″*12 | 62.5 | 62.5 | 48 | ||||
| 1J9-32 | 2.1/2″*12 | 2.1/2″*12 | 78 | 78 | 63 | ||||
| Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. | |||||||||
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
