1JO9-OG
90° ELBOW JIC MALE 74° CONE / SAE O-RING BOSS L-SERIES ISO 11926-3
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 1JO9-OG

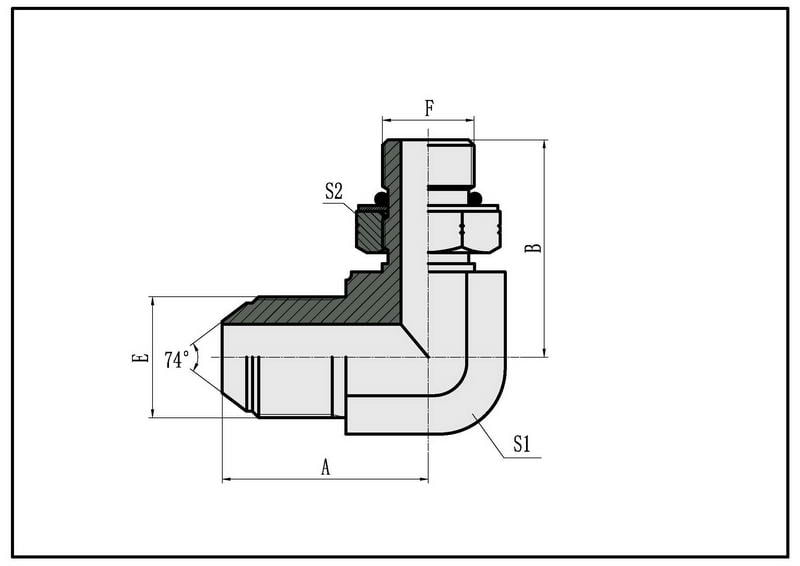

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | F | F | A | B | S1 | S2 | |||
| 1JO9-04-03OG | 7/16″*20 | 3/8″*24 | O903 | 24.5 | 28 | 11 | 14 | ||
| 1JO9-04OG | 7/16″*20 | 7/16″*20 | O904 | 24.5 | 27.2 | 11 | 17 | ||
| 1JO9-04-05OG | 7/16″*20 | 1/2″*20 | O905 | 26.6 | 29.9 | 14 | 17 | ||
| 1JO9-04-06OG | 7/16″*20 | 9/16”*18 | O906 | 26.6 | 31.8 | 14 | 19 | ||
| 1JO9-05-04OG | 1/2″*20 | 7/16″*20 | O904 | 26.6 | 30 | 14 | 17 | ||
| 1JO9-05OG | 1/2″*20 | 1/2″*20 | O905 | 26.6 | 29 | 14 | 17 | ||
| 1JO9-05-06OG | 1/2″*20 | 9/16”*18 | O906 | 26.6 | 31.8 | 14 | 19 | ||
| 1JO9-06-04OG | 9/16”*18 | 7/16″*20 | O904 | 26.9 | 30 | 14 | 17 | ||
| 1JO9-06-05OG | 9/16”*18 | 1/2″*20 | O905 | 26.9 | 29.9 | 14 | 17 | ||
| 1JO9-06OG | 9/16”*18 | 9/16”*18 | O906 | 26.9 | 31.8 | 14 | 19 | ||
| 1JO9-06-08OG | 9/16”*18 | 3/4″*16 | O908 | 30 | 36.8 | 19 | 24 | ||
| 1JO9-08-04OG | 3/4″*16 | 7/16″*20 | O904 | 32 | 33 | 19 | 17 | ||
| 1JO9-08-06OG | 3/4″*16 | 9/16”*18 | O906 | 33 | 33.5 | 19 | 19 | ||
| 1JO9-08OG | 3/4″*16 | 3/4″*16 | O908 | 33 | 36.8 | 19 | 24 | ||
| 1JO9-08-10OG | 3/4″*16 | 7/8″*14 | O910 | 34.8 | 44 | 22 | 27 | ||
| 1JO9-08-12OG | 3/4″*16 | 1.1/16″*12 | O912 | 37.9 | 51 | 27 | 32 | ||
| 1JO9-10-08OG | 7/8″*14 | 3/4″*16 | O908 | 38 | 40 | 22 | 27 | ||
| 1JO9-10OG | 7/8″*14 | 7/8″*14 | O910 | 37.8 | 44 | 22 | 27 | ||
| 1JO9-10-12OG | 7/8″*14 | 1.1/16″*12 | O912 | 41 | 51 | 27 | 32 | ||
| 1JO9-12-08OG | 1.1/16″*12 | 3/4″*16 | O908 | 45 | 44 | 27 | 24 | ||
| 1JO9-12-10OG | 1.1/16″*12 | 7/8″*14 | O910 | 44.2 | 47 | 27 | 27 | ||
| 1JO9-12OG | 1.1/16″*12 | 1.1/16″*12 | O912 | 44.2 | 51 | 27 | 32 | ||
| 1JO9-12-16OG | 1.1/16″*12 | 1.5/16″*12 | O916 | 47.8 | 54.5 | 33 | 41 | ||
| 1JO9-14OG | 1.3/16″*12 | 1.3/16″*12 | O914 | 47.5 | 53 | 30 | 36 | ||
| 1JO9-14-16OG | 1.3/16″*12 | 1.5/16″*12 | O916 | 48.5 | 54.5 | 33 | 41 | ||
| 1JO9-16-12OG | 1.5/16″*12 | 1.1/16″*12 | O912 | 48.8 | 54.5 | 33 | 32 | ||
| 1JO9-16-14OG | 1.5/16″*12 | 1.3/16″*12 | O914 | 49 | 56 | 33 | 36 | ||
| 1JO9-16OG | 1.5/16″*12 | 1.5/16″*12 | O916 | 48.8 | 54.5 | 33 | 41 | ||
| 1JO9-16-20OG | 1.5/16″*12 | 1.5/8″*12 | O920 | 53.8 | 59 | 41 | 50 | ||
| 1JO9-20-16OG | 1.5/8″*12 | 1.5/16″*12 | O916 | 55.5 | 59.5 | 41 | 41 | ||
| 1JO9-20OG | 1.5/8″*12 | 1.5/8″*12 | O920 | 55.3 | 59 | 41 | 50 | ||
| 1JO9-20-24OG | 1.5/8″*12 | 1.7/8″*12 | O924 | 59.4 | 63 | 48 | 55 | ||
| 1JO9-24OG | 1.7/8″*12 | 1.7/8″*12 | O924 | 62.5 | 63 | 48 | 55 | ||
| 1JO9-32OG | 2.1/2″*12 | 2.1/2″*12 | O932 | 80 | 76 | 63 | 70 | ||
| Note: 1. Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. 2. F end is connected with ISO 11926-1 port. |
|||||||||
