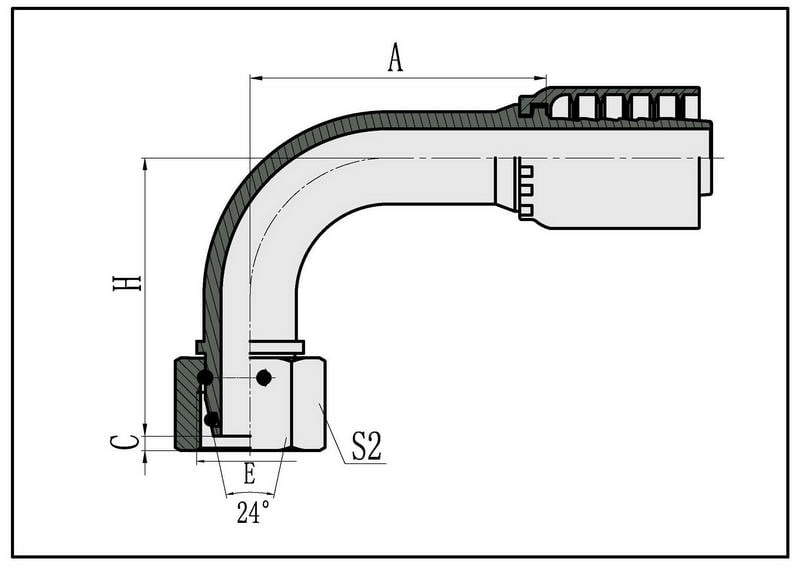

DKOL 90° ONE PIECE METRIC FEMALE 24°CONE O-RING L.T.
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 20491Y
| PART NO. | HOSE BORE | DIMENSIONS | ||||||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | TUBE O.D. | O RING | A | C | H | S2 |
| 20491Y-12-04WZ | – | M12x1.5 | 6 | 4 | 6 | O04.5X1.5 | 27 | 1.4 | 30 | 17 |
| 20491Y-14-04WZ | – | M14x1.5 | 6 | 4 | 8 | O06.5X1.5 | 30 | 1.6 | 30.5 | 17 |
| 20491Y-16-04TZ | – | M16x1.5 | 6 | 4 | 10 | O08.0X1.5 | 30 | 2 | 30.5 | 19 |
| 20491Y-16-05WZ | – | M16x1.5 | 8 | 5 | 10 | O08.0X1.5 | 33 | 2 | 33 | 19 |
| 20491Y-16-06WZ | 20492Y-16-06WZ | M16x1.5 | 10 | 6 | 10 | O08.0X1.5 | 35 | 2 | 33 | 19 |
| 20491Y-18-05TZ | – | M18x1.5 | 8 | 5 | 12 | O10.0X1.5 | 33 | 1.5 | 33.5 | 22 |
| 20491Y-18-06TZ | 20492Y-18-06TZ | M18x1.5 | 10 | 6 | 12 | O10.0X1.5 | 37 | 1.5 | 36 | 22 |
| 20491Y-22-06TZ | 20492Y-22-06TZ | M22x1.5 | 10 | 6 | 15 | O12.0X2.0 | 34.5 | 3 | 36 | 27 |
| 20491Y-22-08TZ | 20492Y-22-08TZ | M22x1.5 | 12 | 8 | 15 | O12.0X2.0 | 42 | 3 | 41.5 | 27 |
| 20491Y-26-08TZ | 20492Y-26-08TZ | M26x1.5 | 12 | 8 | 18 | O15.0X2.0 | 39.5 | 2 | 42.9 | 32 |
| 20491Y-26-10TZ | 20492Y-26-10TZ | M26x1.5 | 16 | 10 | 18 | O15.0X2.0 | 51.2 | 2 | 51.5 | 32 |
| 20491Y-26-12WZ | 20492Y-26-12WZ | M26x1.5 | 20 | 12 | 18 | O15.0X2.0 | 55.5 | 2 | 51.5 | 32 |
| 20491Y-30-10TZ | 20492Y-30-10TZ | M30x2 | 16 | 10 | 22 | O20.0X2.0 | 49 | 4 | 51.5 | 36 |
| 20491Y-30-12TZ | 20492Y-30-12TZ | M30x2 | 20 | 12 | 22 | O20.0X2.0 | 57 | 4 | 56 | 36 |
| 20491Y-36-12TZ | 20492Y-36-12TZ | M36x2 | 20 | 12 | 28 | O26.0X2.0 | 55.3 | 4.5 | 56 | 41 |
| 20491Y-45-16TZ | 20492Y-45-16TZ | M45x2 | 25 | 16 | 35 | O32.0X2.5 | 71 | 4 | 69.5 | 50 |
| 20491Y-45-20TZ | 20492Y-45-20TZ | M45x2 | 32 | 20 | 35 | O32.0X2.5 | 81.5/83.6 | 4 | 86 | 50 |
| 20491Y-52-20TZ | 20492Y-52-20TZ | M52x2 | 32 | 20 | 42 | O38.0X2.5 | 83/85.1 | 4 | 87 | 60 |
| 20491Y-52-24TZ | 20492Y-52-24TZ | M52x2 | 40 | 24 | 42 | O38.0X2.5 | 109.4/112.4 | 4 | 100.5 | 60 |
| Note: | ||||||||||
| 1. The dimension before /for A is suitable for braided hose, and the dimension after /for A is suitable for spiral hose. | ||||||||||
