20593

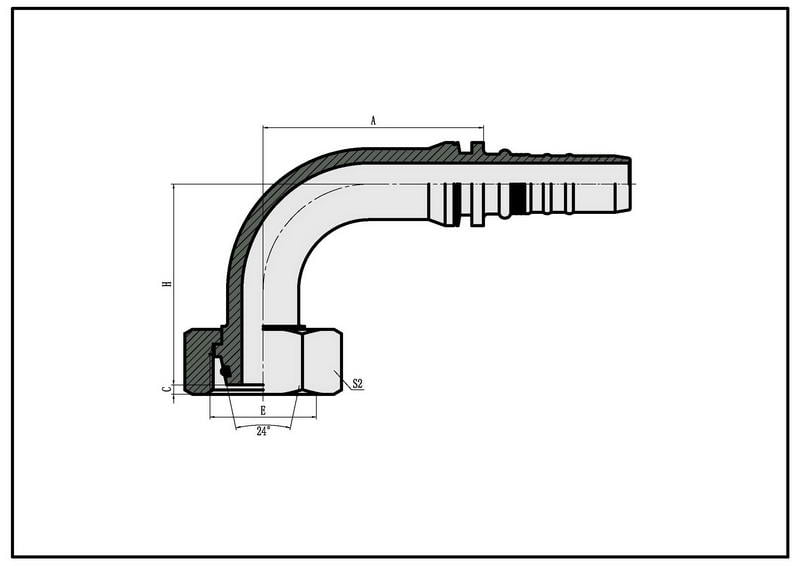

DKOS 90° INTERLOCK METRIC FEMALE 24° CONEO-RING H.T.
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for R13 and R15 hoses |
Details about 20593
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | ||||||
| DN | DASH | TUBE O.D. | O-RING | A | C | H | S2 | ||
| 20593-36-12T | M36*2 | 20 | 12 | 25 | O20.3*2.4 | 74.5 | 3.2 | 67.8 | 46 |
| 20593-36-16W | M36*2 | 25 | 16 | 25 | O20.3*2.4 | 88.9 | 3.2 | 79.5 | 46 |
| 20593-42-16W | M42*2 | 25 | 16 | 30 | O25.3*2.4 | 88.9 | 5 | 80.5 | 50 |
| 20593-42-20T | M42*2 | 32 | 20 | 30 | O25.3*2.4 | 105.8 | 5 | 91.5 | 50 |
| 20593-52-20T | M52*2 | 32 | 20 | 38 | O33.3*2.4 | 105.8 | 6.5 | 86.5 | 60 |
| 20593-52-24W | M52*2 | 40 | 24 | 38 | O33.3*2.4 | 124.2 | 6.5 | 104.5 | 60 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
