22611Y
DKR ONE PIECE BSP FEMALE 60°CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |

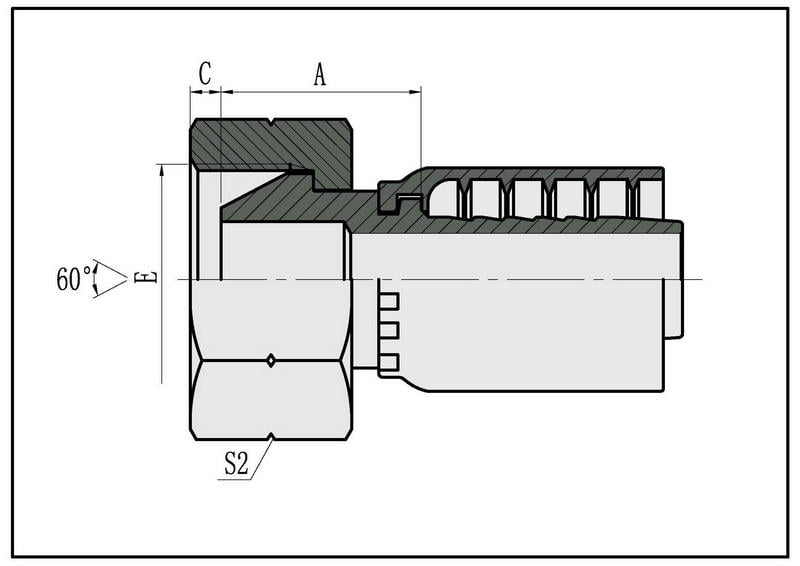

Details about 22611Y
| PART NO. | HOSE BORE | DIMENSIONS | ||||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | A | C | S2 | |
| 22611Y-02-04Z | – | G1/8″x28 | 6 | 4 | 15.5 | 5.5 | 14 | |
| 22611Y-04-04Z | – | G1/4″x19 | 6 | 4 | 18 | 5.5 | 19 | |
| 22611Y-04-05Z | – | G1/4″x19 | 8 | 5 | 18 | 5.5 | 19 | |
| 22611Y-04-06Z | 22612Y-04-06Z | G1/4″x19 | 10 | 6 | 18 | 5.5 | 19 | |
| 22611Y-06-04Z | – | G3/8″x19 | 6 | 4 | 19 | 6.3 | 22 | |
| 22611Y-06-05Z | – | G3/8″x19 | 8 | 5 | 19 | 6.3 | 22 | |
| 22611Y-06-06Z | 22612Y-06-06Z | G3/8″x19 | 10 | 6 | 19.5 | 6.3 | 22 | |
| 22611Y-06-08Z | 22612Y-06-08Z | G3/8″x19 | 12 | 8 | 19.5 | 6.3 | 22 | |
| 22611Y-08-06TZ | 22612Y-08-06TZ | G1/2″x14 | 10 | 6 | 18.5 | 7.5 | 27 | |
| 22611Y-08-08Z | 22612Y-08-08Z | G1/2″x14 | 12 | 8 | 21.5 | 7.5 | 27 | |
| 22611Y-10-08Z | 22612Y-10-08Z | G5/8″x14 | 12 | 8 | 22 | 9.5 | 30 | |
| 22611Y-10-10Z | 22612Y-10-10Z | G5/8″x14 | 16 | 10 | 23 | 9.5 | 30 | |
| 22611Y-12-08TZ | 22612Y-12-08TZ | G3/4″x14 | 12 | 8 | 20 | 10.9 | 32 | |
| 22611Y-12-10Z | 22612Y-12-10Z | G3/4″x14 | 16 | 10 | 24 | 10.9 | 32 | |
| 22611Y-12-12Z | 22612Y-12-12Z | G3/4″x14 | 20 | 12 | 23.5 | 10.9 | 32 | |
| 22611Y-16-12TZ | 22612Y-16-12TZ | G1″x11 | 20 | 12 | 23 | 11.7 | 41 | |
| 22611Y-16-16Z | 22612Y-16-16Z | G1″x11 | 25 | 16 | 27 | 11.7 | 41 | |
| 22611Y-20-16TZ | 22612Y-20-16TZ | G1.1/4″x11 | 25 | 16 | 27 | 11 | 50 | |
| 22611Y-20-20WZ | 22612Y-20-20WZ | G1.1/4″x11 | 32 | 20 | 30.5/32.6 | 11 | 50 | |
| 22611Y-24-20TZ | 22612Y-24-20TZ | G1.1/2″x11 | 32 | 20 | 29.5/31.6 | 13 | 55 | |
| 22611Y-24-24WZ | 22612Y-24-24WZ | G1.1/2″x11 | 40 | 24 | 32/35 | 13 | 55 | |
| 22611Y-32-24TZ | 22612Y-32-24TZ | G2″x11 | 40 | 24 | 30/33 | 16 | 70 | |
| 22611Y-32-32WZ | 22612Y-32-32WZ | G2″x11 | 50 | 32 | 31/34.4 | 16 | 70 | |
| Note: | ||||||||
| 1.The dimension before “/” for A is suitable for braided hose, and the dimension after /for A is suitable for spiral hose. | ||||||||
