22641Y
DKR 45° ONE PIECE BSP FEMALE 60° CONE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |

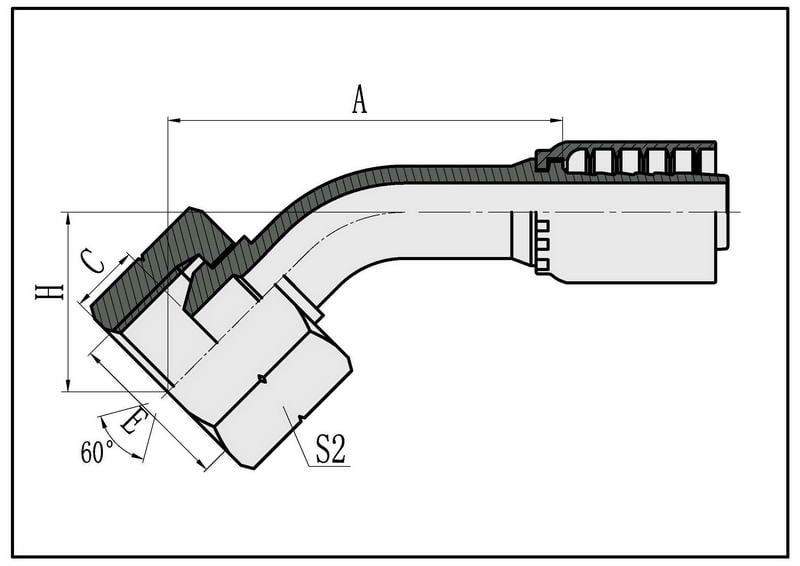

Details about 22641Y
| PART NO. | E | HOSE BORE | DIMENSIONS | ||||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | A | C | H | S2 | |
| 22641Y-04-04Z | – | G1/4″x19 | 6 | 4 | 42.3 | 5.5 | 20.2 | 19 | |
| 22641Y-06-04Z | – | G3/8″x19 | 6 | 4 | 43.2 | 6.3 | 21 | 22 | |
| 22641Y-06-05Z | – | G3/8″x19 | 8 | 5 | 45.3 | 6.3 | 22 | 22 | |
| 22641Y-06-06Z | 22642Y-06-06Z | G3/8″x19 | 10 | 6 | 46.9 | 6.3 | 22.6 | 22 | |
| 22641Y-08-06TZ | 22642Y-08-06TZ | G1/2″x14 | 10 | 6 | 46.7 | 7.5 | 22.5 | 27 | |
| 22641Y-08-08Z | 22642Y-08-08Z | G1/2″x14 | 12 | 8 | 61.1 | 7.5 | 26.1 | 27 | |
| 22641Y-10-08Z | 22642Y-10-08Z | G5/8″x14 | 12 | 8 | 61.4 | 9.5 | 26.5 | 30 | |
| 22641Y-10-10Z | 22642Y-10-10Z | G3/4″x14 | 16 | 10 | 72 | 9.5 | 27.8 | 30 | |
| 22641Y-12-08TZ | 22642Y-12-08TZ | G3/4″x14 | 12 | 8 | 59.4 | 10.9 | 24.4 | 32 | |
| 22641Y-12-10Z | 22642Y-12-10Z | G3/4″x14 | 16 | 10 | 73 | 10.9 | 28.2 | 32 | |
| 22641Y-12-12Z | 22642Y-12-12Z | G3/8″x19 | 20 | 12 | 78.6 | 10.9 | 31.8 | 32 | |
| 22641Y-16-12TZ | 22642Y-16-12TZ | G1″x11 | 20 | 12 | 77.6 | 11.7 | 30.2 | 41 | |
| 22641Y-16-16Z | 22642Y-16-16Z | G1″x11 | 25 | 16 | 88.4 | 11.7 | 34.2 | 41 | |
| 22641Y-20-16TZ | 22642Y-20-16TZ | G1.1/4″x11 | 25 | 16 | 86.8 | 11 | 32.5 | 50 | |
| 22641Y-20-20WZ | 22642Y-20-20WZ | G1.1/4″x11 | 32 | 20 | 98.8/100.9 | 11 | 38 | 50 | |
| 22641Y-24-24WZ | 22642Y-24-24WZ | G1.1/2″x11 | 40 | 24 | 116.2/119.2 | 13 | 45.5 | 55 | |
| 22641Y-32-32WZ | 22642Y-32-32WZ | G2″x11 | 50 | 32 | 135.7/139.1 | 16 | 52.7 | 70 | |
| Note: | |||||||||
| 1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. | |||||||||
