22691KY

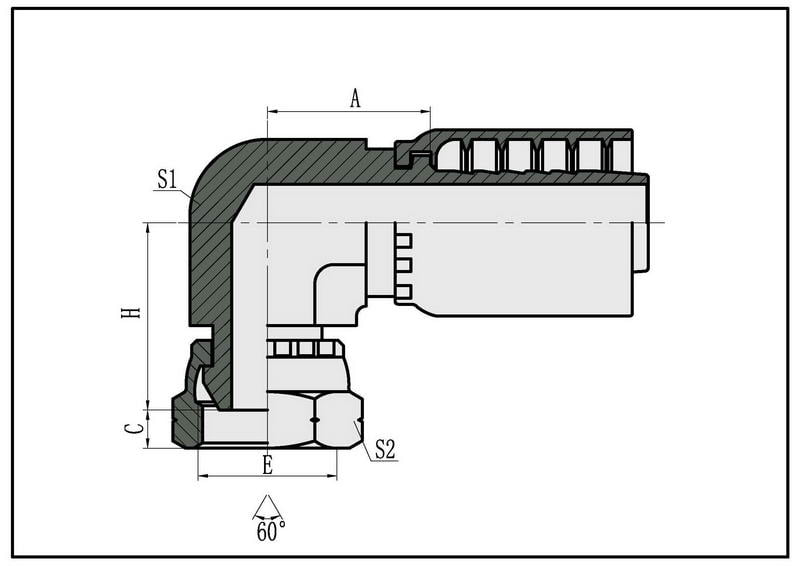

DKR90K ONE PIECE BSP COMPACT FEMALE 60° CONE

Material

carbon steel

Surface

CR3+ zinc plating

Application

coupling for braid or spiral hoses

Details about 22691KY

BRAIDED HOSE SPIRAL HOSE THREAD E DN DASH A C H S1 S2
22691KY-04-04Z G1/4″x19 6 4 17.5 5.5 18.5 11 19
22691KY-06-04Z G3/8″x19 6 4 20 6.3 24 16 22
22691KY-06-05Z G3/8″x19 8 5 20 6.3 24 16 22
22691KY-06-06Z 22692KY-06-06Z G3/8″x19 10 6 20 6.3 24 16 22
22691KY-08-06Z 22692KY-08-06Z G1/2″x14 10 6 23 7.5 28.5 19 27
22691KY-08-08Z 22692KY-08-08Z G1/2″x14 12 8 23.5 7.5 28.5 19 27
22691KY-10-10Z 22692KY-10-10Z G5/8″x14 16 10 24.5 9.5 30.5 22 30
22691KY-12-12Z 22692KY-12-12Z G3/4″x14 20 12 27.5 10.9 33 27 32
22691KY-16-16Z 22692KY-16-16Z G1″x11 25 16 43 11.7 38.5 33 41
Note:
1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose.

Disclaimer:

The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.

 All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
