26711Y

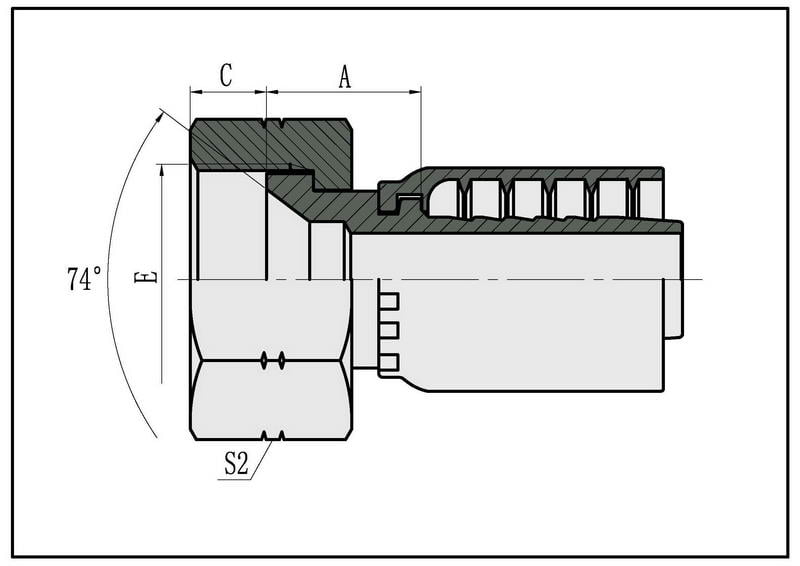

DKJ ONE PIECE JIC FEMALE 74° CONE SEAT
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 26711Y
| PART NO. | E | HOSE BORE | DIMENSIONS | |||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | A | C | S2 | |
| 26711Y-04-04Z | – | 7/16″x20 | 6 | 4 | 15 | 9 | 15 | |
| 26711Y-05-04Z | – | 1/2″x20 | 6 | 4 | 15.5 | 9.5 | 17 | |
| 26711Y-05-05Z | – | 1/2″x20 | 8 | 5 | 15.5 | 9.5 | 17 | |
| 26711Y-05-06Z | 26712Y-05-06Z | 1/2″x20 | 10 | 6 | 15.5 | 9.5 | 17 | |
| 26711Y-06-04Z | – | 9/16″x18 | 6 | 4 | 15.5 | 10.5 | 19 | |
| 26711Y-06-05Z | – | 9/16″x18 | 8 | 5 | 15.5 | 10.5 | 19 | |
| 26711Y-06-06Z | 26712Y-06-06Z | 9/16″x18 | 10 | 6 | 15.5 | 10.5 | 19 | |
| 26711Y-06-08Z | 26712Y-06-08Z | 9/16″x18 | 12 | 8 | 16 | 10.5 | 19 | |
| 26711Y-08-06Z | 26712Y-08-06Z | 3/4″x16 | 10 | 6 | 17.5 | 11 | 24 | |
| 26711Y-08-08Z | 26712Y-08-08Z | 3/4″x16 | 12 | 8 | 18.5 | 11 | 24 | |
| 26711Y-08-10Z | 26712Y-08-10Z | 3/4″x16 | 16 | 10 | 19 | 11 | 24 | |
| 26711Y-10-08Z | 26712Y-10-08Z | 7/8″x14 | 12 | 8 | 19 | 13 | 27 | |
| 26711Y-10-10Z | 26712Y-10-10Z | 7/8″x14 | 16 | 10 | 19.5 | 13 | 27 | |
| 26711Y-10-12Z | 26712Y-10-12Z | 7/8″x14 | 20 | 12 | 20 | 13 | 27 | |
| 26711Y-12-08TZ | 26712Y-12-08TZ | 1.1/16″x12 | 12 | 8 | 19.5 | 15 | 32 | |
| 26711Y-12-10Z | 26712Y-12-10Z | 1.1/16″x12 | 16 | 10 | 21 | 15 | 32 | |
| 26711Y-12-12Z | 26712Y-12-12Z | 1.1/16″x12 | 20 | 12 | 21.5 | 15 | 32 | |
| 26711Y-12-16Z | 26712Y-12-16Z | 1.1/16″x12 | 25 | 16 | 23 | 15 | 32 | |
| 26711Y-14-12Z | 26712Y-14-12Z | 1.3/16″x12 | 20 | 12 | 21.5 | 15 | 36 | |
| 26711Y-16-12TZ | 26712Y-16-12TZ | 1.5/16″x12 | 20 | 12 | 18.5 | 16 | 41 | |
| 26711Y-16-16Z | 26712Y-16-16Z | 1.5/16″x12 | 25 | 16 | 23 | 16 | 41 | |
| 26711Y-16-20Z | 26712Y-16-20Z | 1.5/16″x12 | 32 | 20 | 24/26.1 | 16 | 41 | |
| 26711Y-20-16TZ | 26712Y-20-16TZ | 1.5/8″x12 | 25 | 16 | 23 | 17 | 50 | |
| 26711Y-20-20WZ | 26712Y-20-20WZ | 1.5/8″x12 | 32 | 20 | 25/27.1 | 17 | 50 | |
| 26711Y-24-20TZ | 26712Y-24-20TZ | 1.7/8″x12 | 32 | 20 | 26.5/28.6 | 20 | 55 | |
| 26711Y-24-24WZ | 26712Y-24-24WZ | 1.7/8″x12 | 40 | 24 | 26.5/29.5 | 20 | 55 | |
| 26711Y-32-24TZ | 26712Y-32-24TZ | 2.1/2″x12 | 40 | 24 | 27/30 | 23.5 | 75 | |
| 26711Y-32-32TZ | 26712Y-32-32TZ | 2.1/2″x12 | 50 | 32 | 27/30.4 | 23.5 | 75 | |
| Note: | ||||||||
| 1. The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. | ||||||||
