26741Y

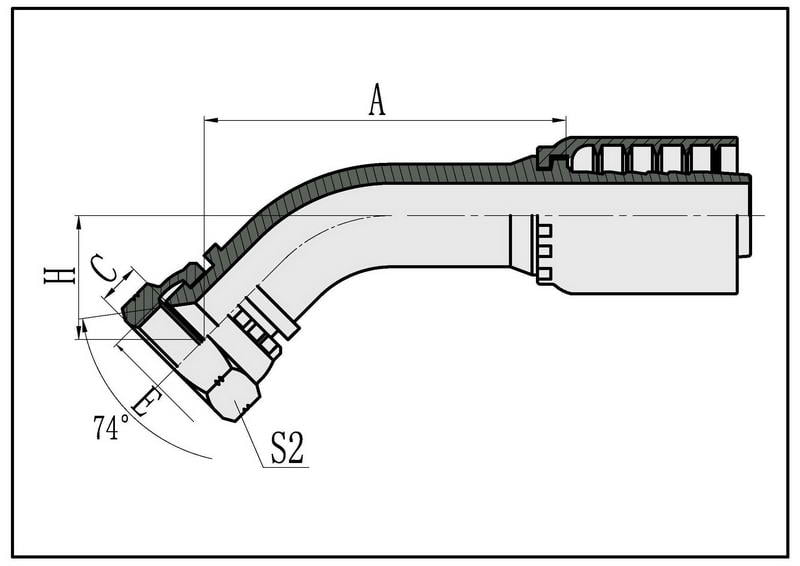

DKJ 45° ONE PIECE JIC FEMALE 74° CONE SEAL
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 26741Y
| PART NO. | E | HOSE BORE | DIMENSIONS | ||||||
| BRAIDED HOSE | SPIRAL HOSE | THREAD E | DN | DASH | A | C | H | S2 | |
| 26741Y-04-04Z | – | 7/16″x20 | 6 | 4 | 35.2 | 9 | 13.1 | 15 | |
| 26741Y-05-04Z | – | 1/2″x20 | 6 | 4 | 35.6 | 9.5 | 13.5 | 17 | |
| 26741Y-05-05Z | – | 1/2″x20 | 8 | 5 | 37.7 | 9.5 | 14.4 | 17 | |
| 26741Y-05-06Z | 26742Y-05-06Z | 1/2″x20 | 10 | 6 | 37.7 | 9.5 | 14.4 | 17 | |
| 26741Y-06-04Z | – | 9/16″x18 | 6 | 4 | 35.6 | 10.5 | 13.5 | 19 | |
| 26741Y-06-05Z | – | 9/16″x18 | 8 | 5 | 37.7 | 10.5 | 14.4 | 19 | |
| 26741Y-06-06Z | 26742Y-06-06Z | 9/16″x18 | 10 | 6 | 38.8 | 10.5 | 14.8 | 19 | |
| 26741Y-06-08Z | 26742Y-06-08Z | 9/16″x18 | 12 | 8 | 39.3 | 10.5 | 14.8 | 19 | |
| 26741Y-08-06Z | 26742Y-08-06Z | 3/4″x16 | 10 | 6 | 40.2 | 11 | 16.2 | 24 | |
| 26741Y-08-08Z | 26742Y-08-08Z | 3/4″x16 | 12 | 8 | 45.3 | 11 | 19 | 24 | |
| 26741Y-10-08Z | 26742Y-10-08Z | 7/8″x14 | 12 | 8 | 46.3 | 13 | 20 | 27 | |
| 26741Y-10-10Z | 26742Y-10-10Z | 7/8″x14 | 16 | 10 | 54.1 | 13 | 21.8 | 27 | |
| 26741Y-10-12Z | 26742Y-10-12Z | 7/8″x14 | 20 | 12 | 58.6 | 13 | 21.8 | 27 | |
| 26741Y-12-08Z | 26742Y-12-08Z | 1.1/16″x12 | 12 | 8 | 50.4 | 15 | 21.1 | 32 | |
| 26741Y-12-10Z | 26742Y-12-10Z | 1.1/16″x12 | 16 | 10 | 55.1 | 15 | 22.8 | 32 | |
| 26741Y-12-12Z | 26742Y-12-12Z | 1.1/16″x12 | 20 | 12 | 59.3 | 15 | 24.2 | 32 | |
| 26741Y-12-16Z | 26742Y-12-16Z | 1.1/16″x12 | 25 | 16 | 70.3 | 15 | 24.2 | 32 | |
| 26741Y-14-12Z | 26742Y-14-12Z | 1.3/16″x12 | 20 | 12 | 60.1 | 15 | 24.2 | 36 | |
| 26741Y-16-12Z | 26742Y-16-12Z | 1.5/16″x12 | 20 | 12 | 60.1 | 16 | 24.2 | 41 | |
| 26741Y-16-16Z | 26742Y-16-16Z | 1.5/16″x12 | 25 | 16 | 73.5 | 16 | 28 | 41 | |
| 26741Y-16-20Z | 26742Y-16-20Z | 1.5/16″x12 | 32 | 20 | 83.5/85.6 | 16 | 28 | 41 | |
| 26741Y-20-20WZ | 26742Y-20-20WZ | 1.5/8″x12 | 32 | 20 | 85.6/87.7 | 17 | 35.2 | 50 | |
| 26741Y-24-20WZ | 26742Y-24-20WZ | 1.7/8″x12 | 32 | 20 | 86.6/88.7 | 20 | 40.1 | 55 | |
| 26741Y-24-24WZ | 26742Y-24-24WZ | 1.7/8″x12 | 40 | 24 | 114.8/117.8 | 20 | 44.1 | 55 | |
| 26741Y-32-32WZ | 26742Y-32-32WZ | 2.1/2″x12 | 50 | 32 | 135.9/139.3 | 23.5 | 51.6 | 75 | |
| Note: | |||||||||
| 1.The dimension before “/” for A is suitable for braided hose, and the dimension after “/” for A is suitable for spiral hose. | |||||||||
