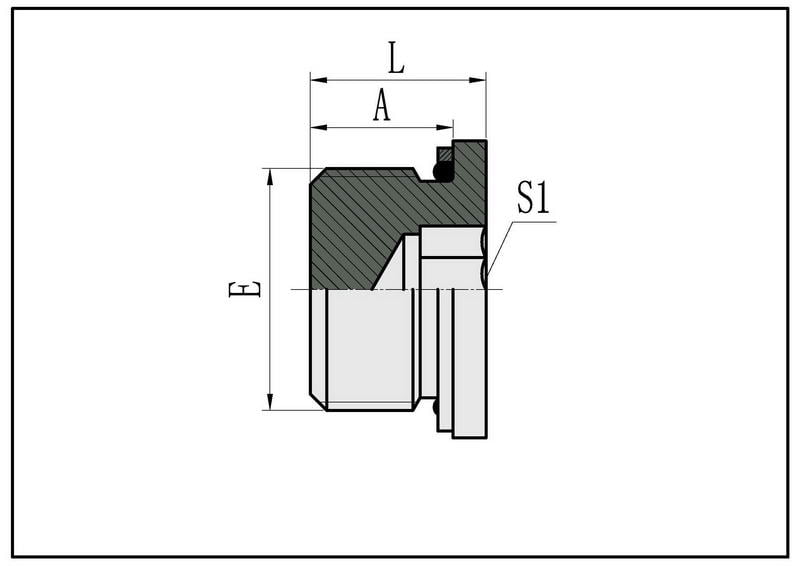

METRIC MALE L-SERIES HOLLOW HEX PLUG ISO 6149-3
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |
Details about 4HN
| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | E | A | L | S1 | |||||
| 4HN-10 | M10*1 | O08.1*1.6 | 8.5 | 11.5 | 14 | ||||
| 4HN-12 | M12*1.5 | O09.3*2.4 | 11.0 | 14 | 17 | ||||
| 4HN-14 | M14*1.5 | O11.3*2.4 | 11.0 | 14 | 19 | ||||
| 4HN-16 | M16*1.5 | O13.3*2.4 | 11.5 | 14 | 22 | ||||
| 4HN-18 | M18*1.5 | O15.3*2.4 | 12.5 | 15.5 | 24 | ||||
| 4HN-22 | M22*1.5 | O19.3*2.4 | 13.0 | 16 | 27 | ||||
| 4HN-27 | M27*2 | O23.5*3.0 | 16.0 | 19 | 32 | ||||
| 4HN-33 | M33*2 | O29.5*3.0 | 16.0 | 20 | 41 | ||||
| 4HN-42 | M42*2 | O38.5*3.0 | 16.0 | 22 | 50 | ||||
| 4HN-48 | M48*2 | O44.5*3.0 | 17.5 | 21.5 | 55 | ||||
| Note: Fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring. | |||||||||
