50041

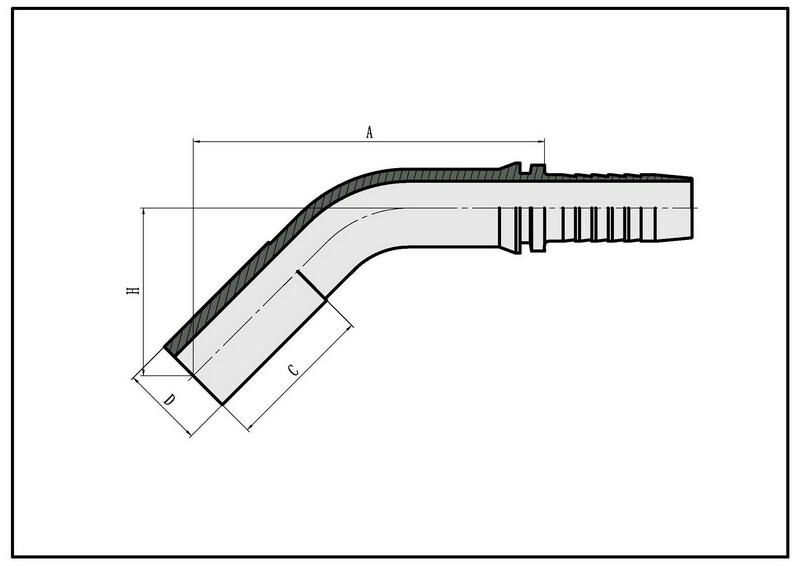

BEL,BES 45°METRIC STANDPIPE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for braid or spiral hoses |
Details about 50041
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||||
| Braided hose | Spiral hose | DN | DASH | A | C | H | NOTE | |
| 50041-06-03 | 50042-06-03 | 6 | 5 | 03 | 47.8 | 22 | 27.5 | BEL LIGHT |
| 50041-06-04 | 50042-06-04 | 6 | 6 | 04 | 52.2 | 22 | 30.1 | |
| 50041-08-05 | 50042-08-05 | 8 | 8 | 05 | 55.7 | 24 | 32.4 | |
| 50041-08-06 | 50042-08-06 | 8 | 10 | 06 | 57.9 | 24 | 33.1 | |
| 50041-10-05 | 50042-10-05 | 10 | 8 | 05 | 54 | 23 | 30.6 | |
| 50041-10-06 | 50042-10-06 | 10 | 10 | 06 | 56.1 | 23 | 31.3 | |
| 50041-12-06 | 50042-12-06 | 12 | 10 | 06 | 58.5 | 23 | 34.5 | |
| 50041-12-08 | 50042-12-08 | 12 | 12 | 08 | 72.4 | 23 | 37.4 | |
| 50041-15-06 | 50042-15-06 | 15 | 10 | 06 | 59.3 | 25 | 34.5 | |
| 50041-15-08 | 50042-15-08 | 15 | 12 | 08 | 70.6 | 25 | 35.7 | |
| 50041-18-08 | 50042-18-08 | 18 | 12 | 08 | 73.4 | 26 | 38.5 | |
| 50041-18-10 | 50042-18-10 | 18 | 16 | 10 | 84.6 | 26 | 39.8 | |
| 50041-22-10 | 50042-22-10 | 22 | 16 | 10 | 87.1 | 28 | 42.3 | |
| 50041-22-12 | 50042-22-12 | 22 | 20 | 12 | 93.3 | 28 | 45.9 | |
| 50041-22-16 | 50042-22-16 | 22 | 25 | 16 | 100.9 | 28 | 46.7 | |
| 50041-28-16 | 50042-28-16 | 28 | 25 | 16 | 103.7 | 30 | 49.5 | |
| 50041-35-20 | 50042-35-20 | 35 | 32 | 20 | 118.5 | 36 | 57.8 | |
| 50041-08-04 | 50042-08-04 | 8 | 6 | 04 | 53.6 | 24 | 31.5 | BES HEAVY |
| 50041-10-04 | 50042-10-04 | 10 | 6 | 04 | 54 | 26 | 31.9 | |
| 50041-12-04 | 50042-12-04 | 12 | 6 | 04 | 57.1 | 26 | 35.1 | |
| 50041-12-05 | 50042-12-05 | 12 | 8 | 05 | 59.2 | 26 | 35.9 | |
| 50041-14-06 | 50042-14-06 | 14 | 10 | 06 | 61.6 | 29 | 37.3 | |
| 50041-14-08 | 50042-14-08 | 14 | 12 | 08 | 73.8 | 29 | 38.8 | |
| 50041-14-12 | 50042-14-12 | 14 | 20 | 12 | 91.9 | 29 | 43.8 | |
| 50041-16-08 | 50042-16-08 | 16 | 12 | 08 | 76.6 | 30 | 41.7 | |
| 50041-16-10 | 50042-16-10 | 16 | 16 | 10 | 87.8 | 30 | 43 | |
| 50041-20-10 | 50042-20-10 | 20 | 16 | 10 | 92.8 | 36 | 48 | |
| 50041-20-12 | 50042-20-12 | 20 | 20 | 12 | 100.7 | 36 | 52.6 | |
| 50041-25-12 | 50042-25-12 | 25 | 20 | 12 | 101.8 | 40 | 54.4 | |
| 50041-25-16 | 50042-25-16 | 25 | 25 | 16 | 109.4 | 40 | 55.2 | |
| 50041-30-16 | 50042-30-16 | 30 | 25 | 16 | 113.6 | 44 | 59.4 | |
| 50041-30-20 | 50042-30-20 | 30 | 32 | 20 | 124.2 | 44 | 63.5 | |
| 50041-38-16 | 50042-38-16 | 38 | 25 | 16 | 117.9 | 50 | 63.6 | |
| 50041-38-20 | 50042-38-20 | 38 | 32 | 20 | 128.4 | 50 | 67.7 | |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
