5B-WD

BUSH BSP MALE CAPTIVE SEAL / BSP FEMALE ISO 1179

Material

carbon steel

Surface

CR3+ zinc plating

Application

Connector for fittings and tubes

Details about 5B-WD

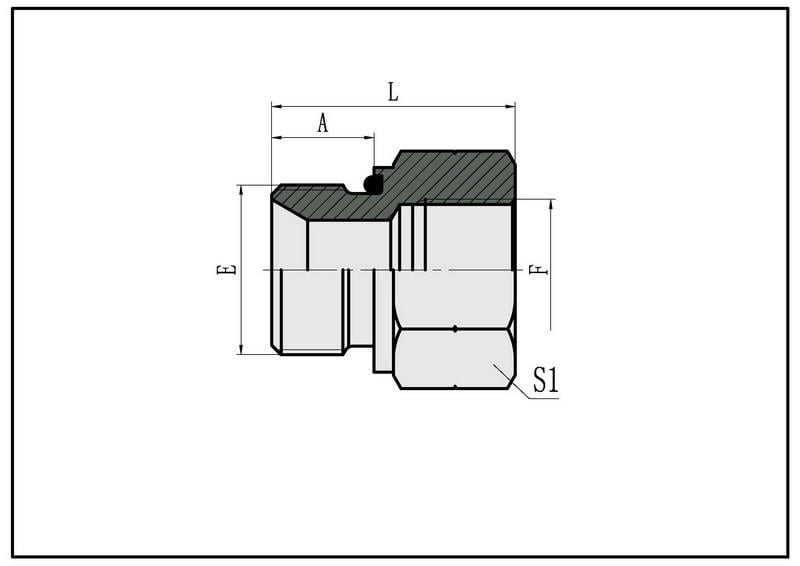

PART NO.  THREAD CAPTIVE  DIMENSIONS
E F E A L S1
5B-02-04WD G1/8″*28 G1/4″*19 WD-B02 8 30.5 19
5B-02-06WD G1/8″*28 G3/8″*19 WD-B02 8 33.5 22
5B-04-02WD G1/4″*19 G1/8″*28 WD-B04 12 31.5 19
5B-04-06WD G1/4″*19 G3/8″*19 WD-B04 12 37 22
5B-04-08WD G1/4″*19 G1/2″*14 WD-B04 12 43 27
5B-06-02WD G3/8″*19 G1/8″*28 WD-B06 12 35.5 22
5B-06-04WD G3/8″*19 G1/4″*19 WD-B06 12 37.5 22
5B-06-08WD G3/8″*19 G1/2″*14 WD-B06 12 43.5 27
5B-08-04WD G1/2″*14 G1/4″*19 WD-B08 14 38 27
5B-08-06WD G1/2″*14 G3/8″*19 WD-B08 14 41 27
5B-08-12WD G1/2″*14 G3/4″*14 WD-B08 14 46 36
5B-12-08WD G3/4″*14 G1/2″*14 WD-B12 16 47.5 32
5B-12-16WD G3/4″*14 G1″*11 WD-B12 16 53.5 41
5B-12-20WD G3/4″*14 G1.1/4″*11 WD-B12 16 54.5 50
5B-16-12WD G1″*11 G3/4″*14 WD-B16 18 50.5 41
5B-16-20WD G1″*11 G1.1/4″*11 WD-B16 18 56.5 50
5B-20-16WD G1.1/4″*11 G1″*11 WD-B20 20 57.5 50
5B-20-24WD G1.1/4″*11 G1.1/2″*11 WD-B20 20 59.5 55
5B-20-32WD G1.1/4″*11 G2″*11 WD-B20 20 64 70
5B-24-16WD G1.1/2″*11 G1″*11 WD-B24 22 59.5 55
5B-24-20WD G1.1/2″*11 G1.1/4″*11 WD-B24 22 60 55
5B-24-32WD G1.1/2″*11 G2″*11 WD-B24 22 66 70
