5GT
BUSH BSP MALE O-RING / BSPT FEMALE
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | Connector for fittings and tubes |

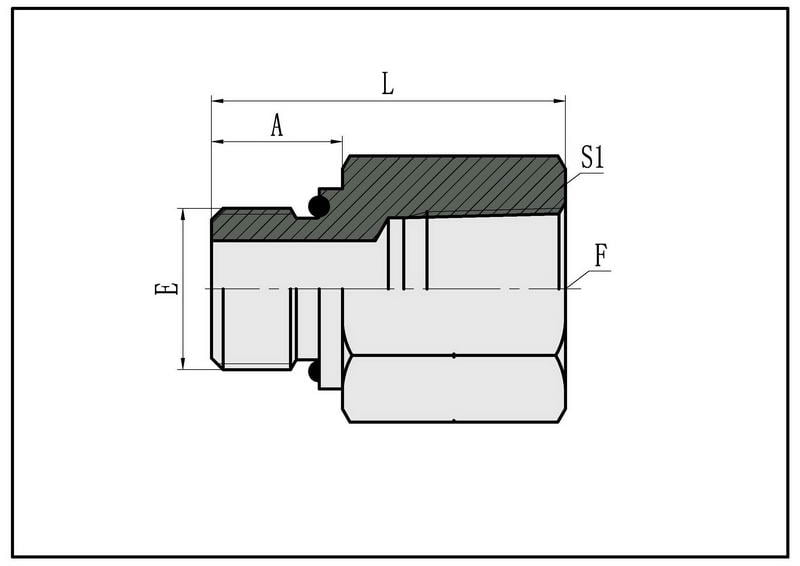

Details about 5GT
| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | F | E | A | L | S1 | ||||
| 5GT-02 | G1/8″*28 | Rc1/8″*28 | O111 | 9.5 | 26 | 14 | |||
| 5GT-04 | G1/4″*19 | Rc1/4″*19 | O111 | 10 | 32 | 19 | |||
| 5GT-06 | G3/8″*19 | Rc3/8″*19 | O113 | 11.5 | 37 | 22 | |||
| 5GT-08-06 | G1/2″*14 | Rc3/8″*19 | O115 | 14 | 38 | 27 | |||
| 5GT-08 | G1/2″*14 | Rc1/2″*14 | O115 | 14 | 46 | 27 | |||
| 5GT-12 | G3/4″*14 | Rc3/4″*14 | O119 | 15.5 | 49.5 | 36 | |||
| 5GT-16 | G1″*11 | Rc1″*11 | O217 | 18 | 52 | 41 | |||
