87343
SFL 45° INTERLOCK SAE FLANGE 3000 PSI
| Material | carbon steel |
|---|---|
| Surface | CR3+ zinc plating |
| Application | coupling for R13 and R15 hoses |
Details about 87343

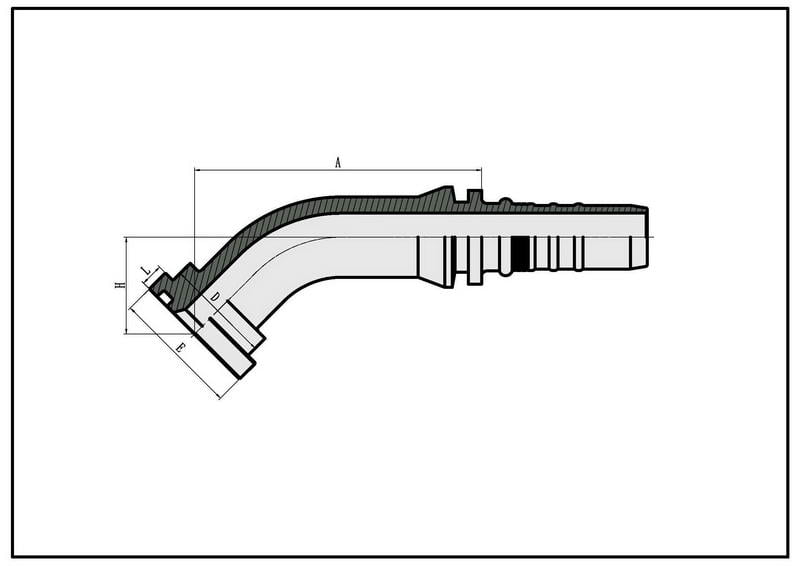

| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | D | H | L | ||
| 87343-12-12 | 3/4″ | 20 | 12 | 85.8 | 38.1 | 31.7 | 28.9 | 6.73 |
| 87343-16-12 | 1″ | 20 | 12 | 85.8 | 44.4 | 38 | 28.9 | 8 |
| 87343-16-16 | 1″ | 25 | 16 | 96.1 | 44.4 | 38 | 29.7 | 8 |
| 87343-20-16 | 1.1/4″ | 25 | 16 | 96.1 | 50.8 | 43 | 29.7 | 8 |
| 87343-20-20 | 1.1/4″ | 32 | 20 | 108.8 | 50.8 | 43 | 33.8 | 8 |
| 87343-24-20 | 1.1/2″ | 32 | 20 | 110.2 | 60.3 | 50 | 35.2 | 8 |
| 87343-24-24 | 1.1/2″ | 40 | 24 | 123.7 | 60.3 | 50 | 39.1 | 8 |
| 87343-32-24 | 2″ | 40 | 24 | 123.7 | 71.4 | 62 | 39.1 | 9.53 |
| 87343-32-32 | 2″ | 50 | 32 | 148.3 | 71.4 | 62 | 46.3 | 9.53 |
Disclaimer:
The data contained herein is for information purposes only, despite careful checking, we cannot guarantee the accuracy of all information included on this site.
All data and information are based on currently valid standards, while our products are always subject to further development, and technical changes are therefore possible.
